Full Hydro HD Universal Steering Kit 8 inch TGI-309493

Universal Heavy Duty Full Hydraulic Steering Kits

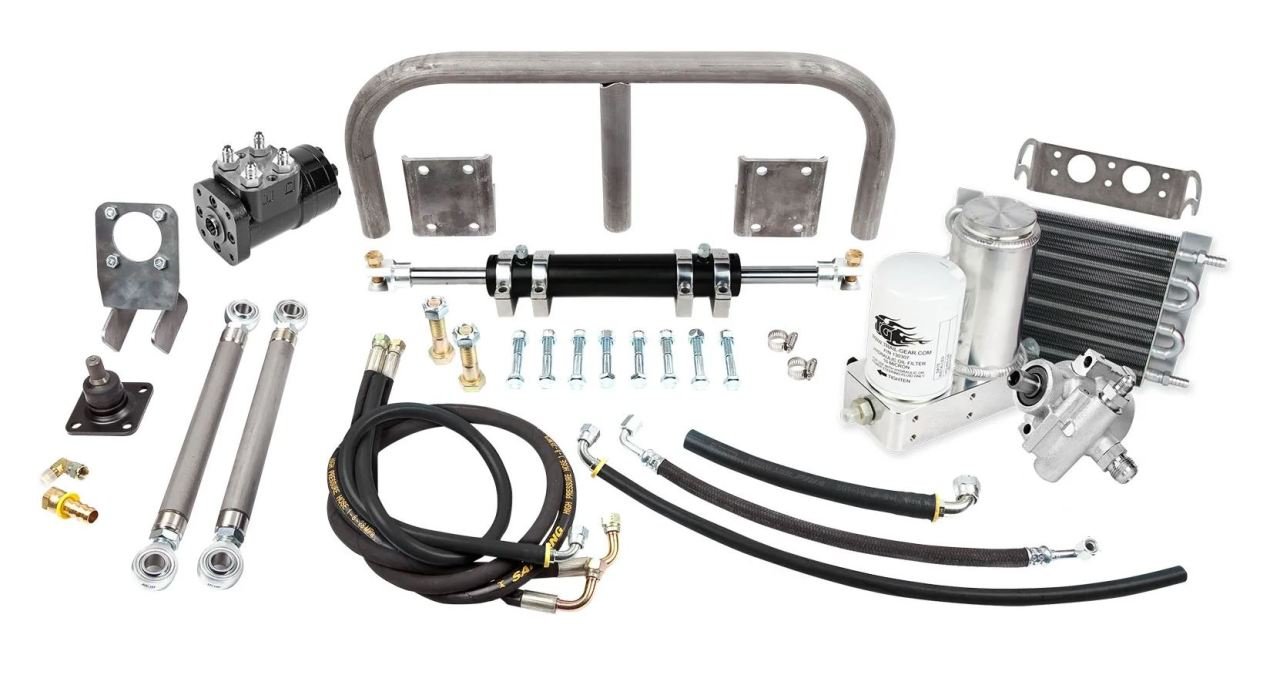

Trail-Gear's Universal Heavy Duty Full Hydraulic Steering Kit starts with a heavy-duty double-ended (2.5" bore x 1.375" rod) ram and clevis kit in your choice of size - 8-inch, 8.75-inch, or 10-inch . In addition, the complete kit also includes:

(1) Orbital (125ml or 160ml)

(1) 1650 PSI Power Flow steering pump (4.5 GPM)

(1) Tie rod kit

(1) Ram mounting kit

(1) Steering column

(1) Orbital mounting kit

(1) Reservoir with filter

(1) Reservoir mounting bracket

(1) Power steering cooler

(1) Hose kit (steel braided with crimped-on ends)

Mounting hardware

Just add your own steering pump bracket, pulley, and belt to install this kit on virtually any solid axle application!

IMPORTANT NOTES:

Use only standard power steering fluid with this product. The use of ATF fluid, semi-synthetic fluid, or full synthetic fluid is not recommended and will void the warranty.

If you are using our Rock Assault 9 Front Axle Housing, you will need to use a 10" ram for your steering setup.

Works with most leaf spring applications, please call our technicians at 559.252.4950 to ensure compatibility before making your purchase.
