Toyota 29 Milling Bevel Assembly Kit YOKTOYFITKIT-29
USD 297,00
With installments starting from 30,69 USD !!
Toyota 29 Milling Mirror Final Assembly Kit YOKTOYFITKIT-29
Nitro Gear
Kit to convert 27-spline to 29-spline for 2002 and older differentials
Toyota 29 Spline Double drilled Pinion Flange, Fits 2003+ or 1984+ with Nitro Gears for T8, TV6, T8R, T8S Yoke 29 Spline, Fits All 1984+ 66X66 & 60X60
In 2002, Toyota started using 29 Spline pinion & flange on the 8” & 9.5” differentials. Following Toyota's lead for an upgrade, Nitro Gear & Axle has been upgrading much of their line of Ring & Pinions for Toyota to 29 Spline. This means, if you are fitting the newer 29 Spline Ring & pinion to a 2002 or Older diff, you will need this flange.

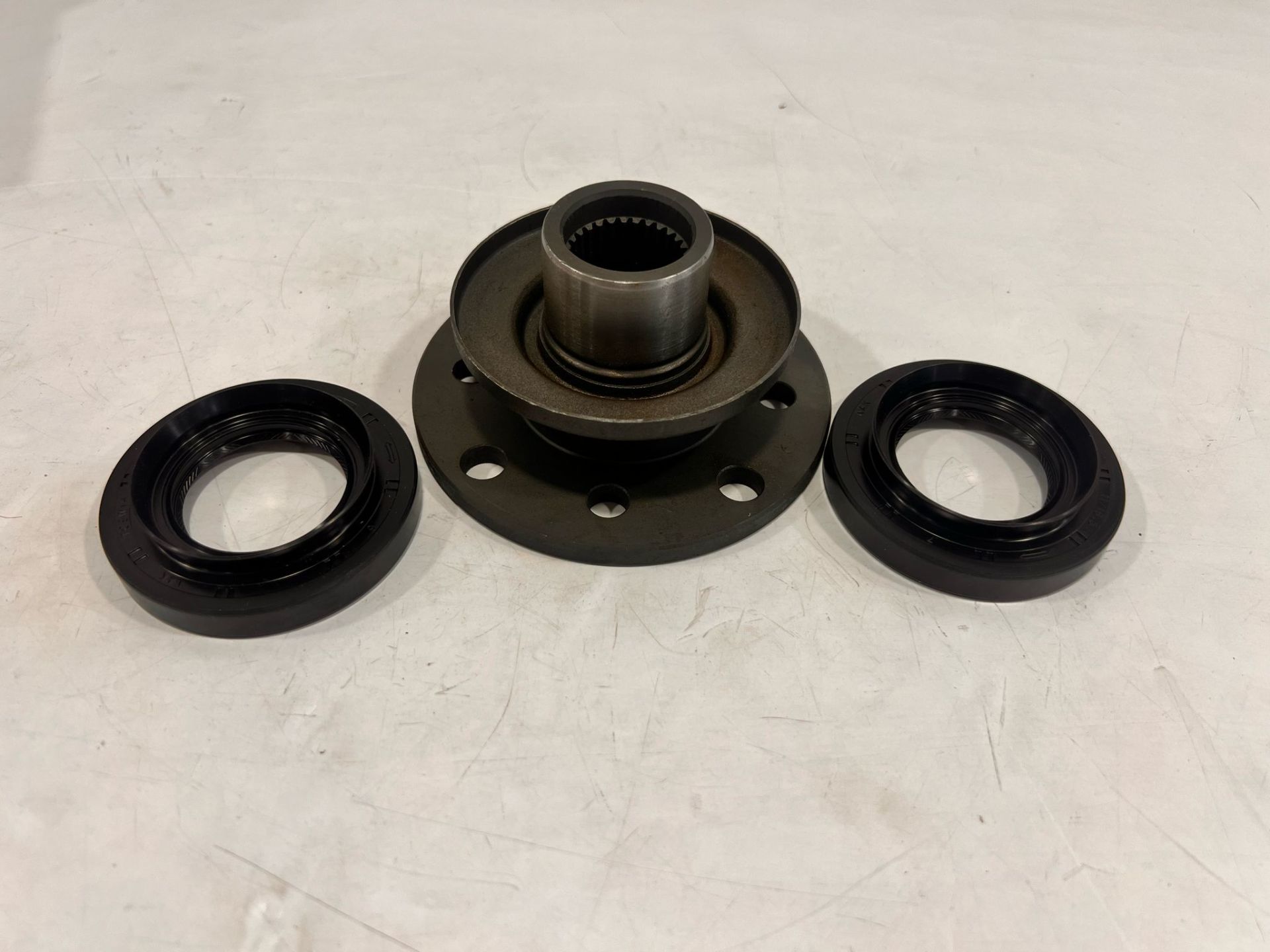

Kit Contents: Toyota 8" & 9.5" 29 Spline Pinion Flange, Pinion Nut and Pinion Seal
Dual Drilled Bolt Pattern with common 60x60mm & 66x66mm Patterns
Differential: Toyota 8" Rear, 8” Reverse, 8” Clamshell & Land Cruiser 9.5”
Pinion Spline Count: 29
Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm used with TOY90311-41009 Pinion seal (included)
Replacements Toyota OE Part number 41204-35100 & 41204-35110
Applications:
- As a replacement for 2003+ Toyota vehicles with 8” or 9.5” diffs with 29 Spline OEM Ring & Pinions
- Required to fit Nitro 29 Spline 8” or 9.5” Ring & Pinions to 2002 & older vehicles
Features:
Pinion Spline Count: 29
Dual Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm
Replacements Toyota OE Part number 41204-35100 & 41204-35110
In 2002, Toyota started using 29 Spline pinion & flange on the 8” & 9.5” differentials. Following Toyota's lead for an upgrade, Nitro Gear & Axle has been upgrading much of their line of Ring & Pinions for Toyota to 29 Spline. This means, if you are fitting the newer 29 Spline Ring & pinion to a 2002 or Older diff, you will need this flange.
Kit Contents: Toyota 8" & 9.5" 29 Spline Pinion Flange, Pinion Nut and Pinion Seal
Dual Drilled Bolt Pattern with common 60x60mm & 66x66mm Patterns
Differential: Toyota 8" Rear, 8” Reverse, 8” Clamshell & Land Cruiser 9.5”
Pinion Spline Count: 29
Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm used with TOY90311-41009 Pinion seal (included)
Replacements Toyota OE Part number 41204-35100 & 41204-35110
Applications:
- As a replacement for 2003+ Toyota vehicles with 8” or 9.5” diffs with 29 Spline OEM Ring & Pinions
- Required to fit Nitro 29 Spline 8” or 9.5” Ring & Pinions to 2002 & older vehicles
Features:
Pinion Spline Count: 29
Dual Bolt Patterns: 60mm x 60mm, 66mm x 66mm
Seal Surface: 1.615"/41mm
Replacements Toyota OE Part number 41204-35100 & 41204-35110
